JC Jeep Chassis for LJ

  • All new Jeep LJ Chassis from Wide Open Design
  • Designed to be a true cross-over between a modified Jeep trail rig, and a full tube buggy
  • Provides the comforts of a full body trail rig with the performance of a buggy
  • Designed for performance, function, safety, and reliability
  • Built with 1 3/4" x .120 & .188 DOM Tubing
  • All chosen options are fully welded in place

Note: Does not include the tub

Typical Lead Time: 4 - 8 weeks

Watch the Jeep Frame/Chassis Overview Video

Images show ALL options applied. Your order will differ if all options are not selected.

Check out Jeep LJ galleries using this chassis:

$3,400.00
SKU
JC Jeep Chassis for LJ

Chassis Questions? We've got Answers!

Typical Lead Time: 4 - 8 weeks

The All New Wide Open Design Jeep LJ Chassis has been long awaited. Just like our other Jeep Chassis', this chassis is designed to be a true cross-over between a modified Jeep trail rig, and a full tube buggy. The JC provides the comforts of a full body trail rig with the performance of a buggy. The JC can be purchased as just a bare chassis or with a few different options. All selected options are fully welded in place.

Note: Does not include the tub. Does not include suspension components, axles, wheels, ect. Only the frame and selected available options.

Hammer Down for Longer

Our Heavy Duty (HD) design places 1.75 x .188 wall tubing in the high impact areas where extra strength is needed.

A chassis built entirely out of .120 wall tubing will keep occupants safe in a roll over, but leaves the chassis vulnerable to getting dented and bent. The increased strengthening of a few key impact areas allows the chassis to have a better chance of remaining straight and is less likely to dent from sudden impacts. A heavy duty chassis only adds a minimum amount of weight and you’ll have a chassis that will hold up for years to come.

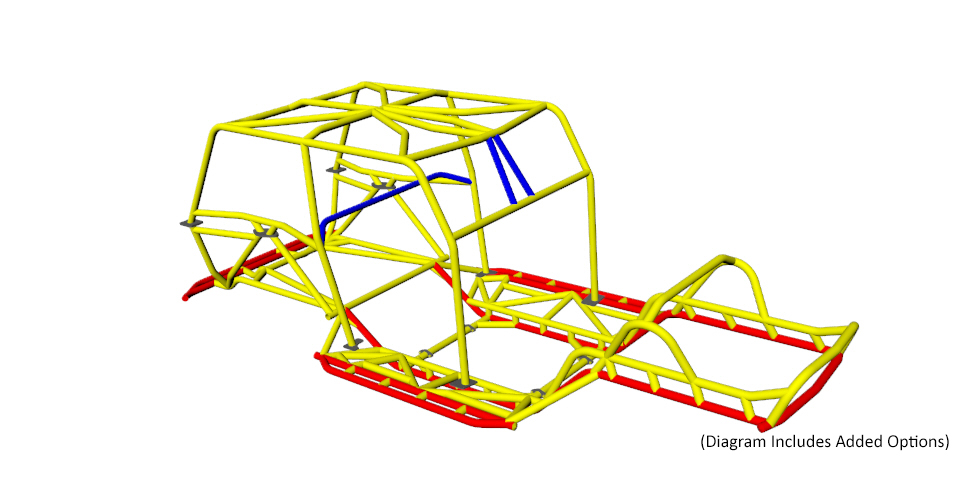

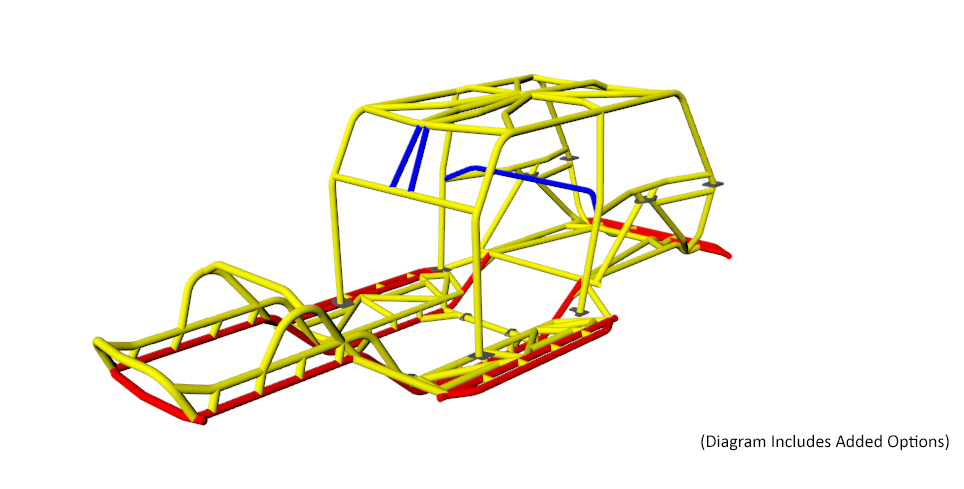

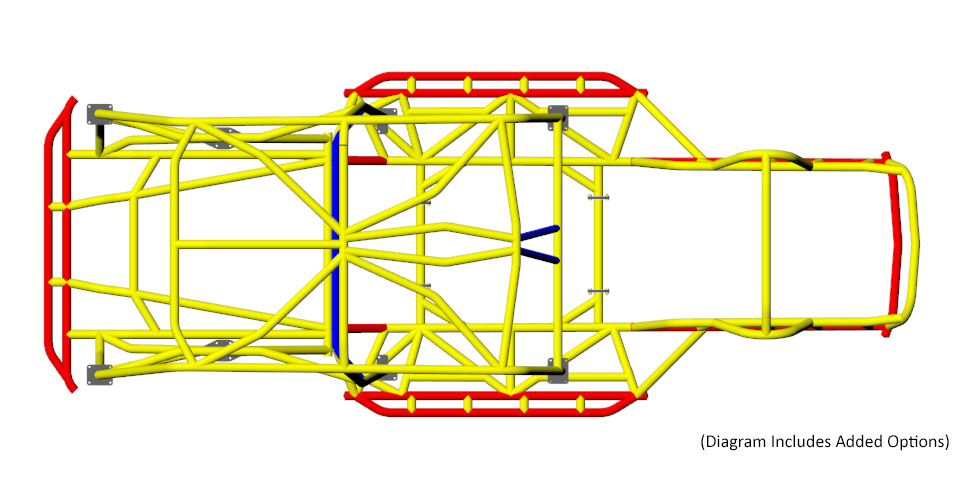

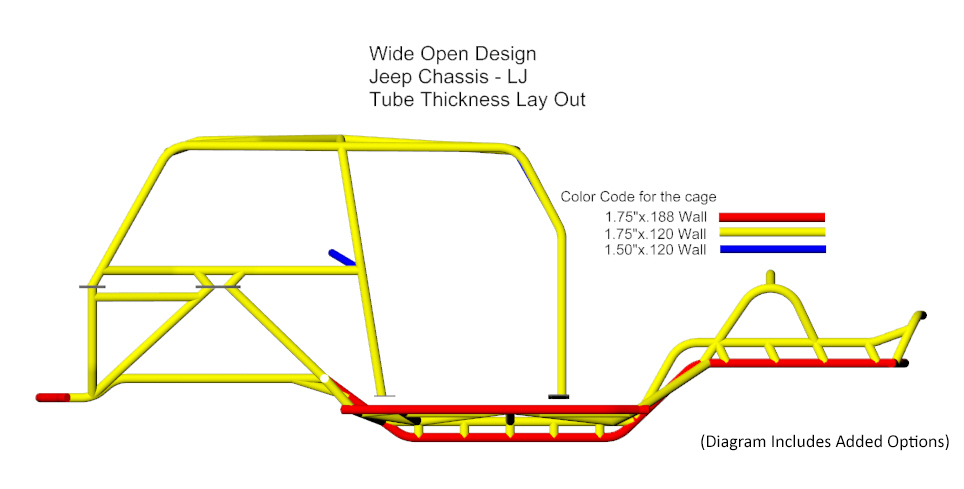

For specific tubing sizes used to build this chassis and their location, reference these images:

Jeep LJ Tube Frame Chassis Tubing Size 1 Jeep LJ Tube Frame Chassis Tubing Size 2 Jeep LJ Tube Frame Chassis Tubing Size 3 Jeep LJ Tube Frame Chassis Tubing Size 4

Sides are Protected with Replaceable .188 Tubing Rock Sliders

.188 wall rock sliders act as protection to the sides of your Jeep LJ. They also double as a step to ease entry and exit from your buggy if you have not chosen to have doors installed. We’ve built these into the chassis that if they do get beat up, they can be easily cut off and replaced with new .188 Tubing RB Rock Sliders

.188 wall rock sliders act as protection to the sides of your Jeep LJ. They also double as a step to ease entry and exit from your buggy if you have not chosen to have doors installed. We’ve built these into the chassis that if they do get beat up, they can be easily cut off and replaced with new .188 Tubing

RB Rock Sliders



Adequate Rear End Room for Fuel Cell and Tool Box/Cooler

Easily fit a 15 gallon fuel cell and a fabricated tool box in the rear end. Have fun trail riding and bring along a few tools that you may need. Or use the tool box as a cooler for your beverages and food.



Install and Remove Components with Ease

Removable Crossmembers allow for easily installing and removing of drive train components into the chassis. These tubes are connected using our Tube Flange sets. RB Removable Crossmembers

Removable Cross members allow for easily installing and removing of drive train components into the chassis. These tubes are connected using our Tube Flange sets.

RB Removable Crossmembers

Correct 4 Link Installation Every Time

The chassis was designed for Proper 4-link Geometry and accepts the most popular axle configurations. Hesitant that it won't fit yours? We can let you know for sure. Email us at sales@wideopendesign.com or give us a call at (615) 962-9135 to confirm.



Beautiful and Professional MIG Welded Fabrication

Our MIG welds are more than just strong, they are professional and good looking also. Our fabricators have years of experience welding onto our chassis and have developed the quality you’d expect from a professional facility. You get reliability and a great looking rig.



Full Support throughout your Build

When you purchase a Wide Open Design chassis, you are also purchasing full build support and guidance. We’ve built a large amount of buggies starting from our chassis and can answer pretty much any question you have in the process. We also have designed and manufactured components specific to our chassis to reduce guesswork and guarantee a great end product.



Build your Dream Jeep!

If there are modifications you may want done to the chassis, we may be able to do it! For a quote on chassis configuration, rolling chassis or turn-key vehicle please email sales@wideopendesign.com or give us a call at (615) 962-9135 with your ideal specifications.



Technical Specifications:

  • Utilizes Jeep LJ Body
  • Weld Type - MIG
  • Main steel structure construction - 1 3/4"x.120 wall DOM steel tubing
  • The lower bars at the belly pan construction - 1 3/4"x.188 wall DOM steel tubing
  • Rocker bars construction - 1 3/4" x .188 wall DOM steel tubing



Available Added Options:

Jeep LJ Tubing Size 4

Check Out Jeep LJ Galleries that use this Chassis:

Check out the Jeep Frame/Chassis Overview Video
