Revolution 2.0 Rock Crawler Chassis
This Rock Crawling design blend is uniquely utilizing the rolled tubing look that we pioneered and which helped put us on the map. This style has since become very popular in the off road industry and we are now making this affordable and refined chassis design available to the consumer.
Check out Rock Crawler Buggy Galleries using this chassis:
This design blend is uniquely utilizing the rolled tubing look that we pioneered and which helped put us on the map. This style has since become very popular in the off road industry and we are now making this affordable and refined chassis design available to the consumer.
The beauty of a chassis from Wide Open Design is that you will have a chassis system formerly only available at a custom, one-off price. The new chassis system is built around tried and true power train, axles, electrical, and suspension configurations to ensure the immediate success of your new buggy.
Based on our first successful production chassis, the Revolution 2.0 Rock Crawler Chassis was created with Wide Open Design's vast knowledge base and experience in hardcore trail riding and racing. The Revolution Rock Crawler series was developed to provide a great platform for multiple uses. We engineered the frame so that suspension components would cohesively perform with the handling characteristics of our frame. Also, the design of this Revolution 2.0 Rock Crawler frame enables you to use modern or popular drivetrain options. This is the ultimate rock crawling buggy chassis!
The Revolution 2.0 Rock Crawler chassis can be purchased as just a bare frame or with a few different options. Full rolling chassis and turn-key vehicles are available.
For a quote on chassis configuration, rolling chassis or turn-key vehicle please email firstname.lastname@example.org with your ideal specifications and we will get back to you promptly!
- Chassis is 55" at it widest point
- 112" to 122" wheel base
- Proper 4-link Geometry - accepts most popular axle configurations
- The main steel structures of the chassis are constructed from 1 3/4"x.120 wall DOM steel tubing
- The lower bars of the chassis at the belly pan are made from 1 3/4"x.188 wall DOM steel tuning
- Rocker bars are constructed from 1 3/4" x .188 wall DOM steel tubing
- The support tubes are made from 1 1/4" x .120 wall DOM tubing
- Optional mounts/tabs available!
HD Option Comes Standard
Our Heavy Duty (HD) design places 1.75 x .188 wall tubing in the high impact areas where extra strength is needed.
What was once a cost option is now standard in all of our chassis. A chassis built entirely out of .120 wall tubing will keep occupants safe in a roll over, but leaves the chassis vulnerable to getting dented and bent. We are strengthening a few key impact areas so that the chassis has a better chance of remaining straight and is less likely to dent from sudden impacts. Going to an HD chassis only adds a minimum amount of weight but it's well worth it to have a chassis that will hold up for years to come.

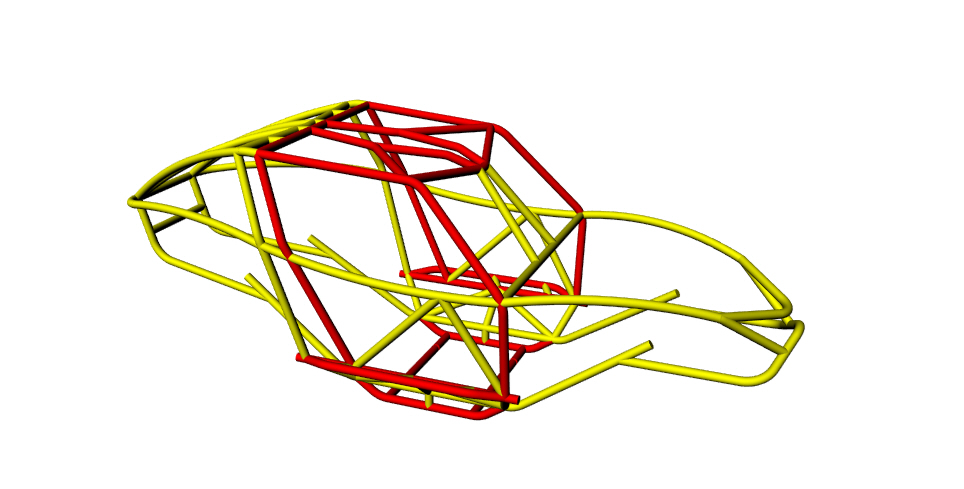

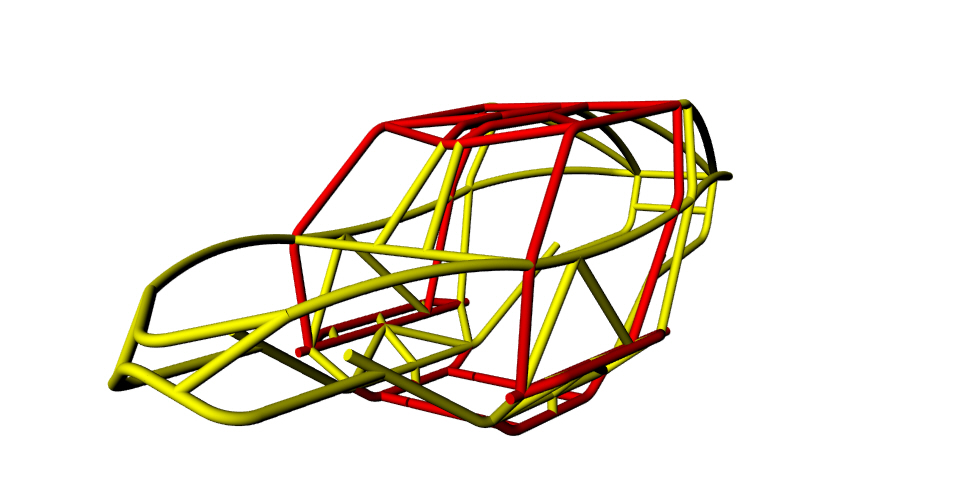

For specific tubing sizes used to build this chassis and their location, reference these images:
Check out Rock Crawler Buggy Galleries that use this chassis:
|Brand||Wide Open Design|
|Add Doors||No Doors|
